Double Gear Pumps

Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VGP-BB	3500	240	1.2 - 4.75	19.6 - 78.0	3000	SAE - B
VGP-CC	3500	240	1.9 - 7.85	31.5 - 128.8	3000	SAE - B / C
VGP-DD	3500	240	3.0 - 12.71	50.2 - 208.4	3000	SAE - C
VGP-EE	3500	240	5.30 - 17.70	87.6 - 208.4	3000	SAE - C
VGP-DB	3500	240	1.88 - 8.79	30.9 - 144.1	3000	SAE - C
VGP-DC	3500	240	2.22 - 10.28	36.5 - 168.6	3000	SAE - C

^*Click on model name for detailed information

Model No.	VGP-BB
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	1.2 - 4.75
Max. Displacement (cm³/rev)	19.6 - 78.0
Maximum Speed RPM	3000
Mounting Standard	SAE - B

Download Catalogue

General Information

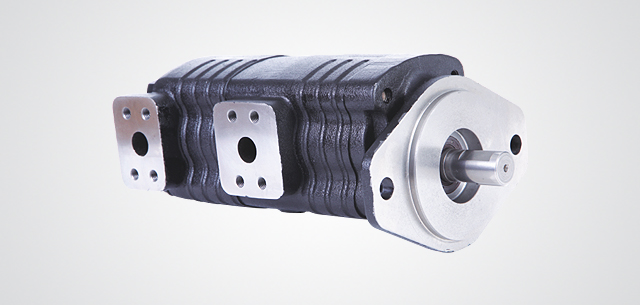

Model No.	VGP-CC
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	1.9 - 7.85
Max. Displacement (cm³/rev)	31.5 - 128.8
Maximum Speed RPM	3000
Mounting Standard	SAE - B, SAE - C

Download Catalogue

General Information

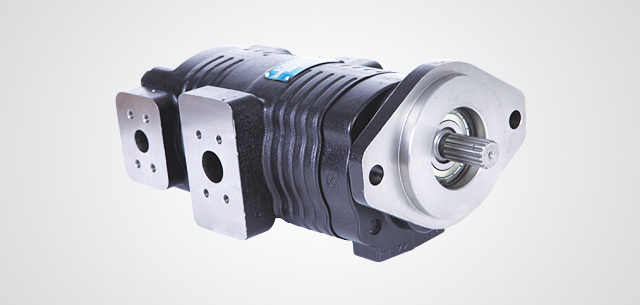

Model No.	VGP-DD
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	3.0 - 12.71
Max. Displacement (cm³/rev)	50.2 - 208.4
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

General Information

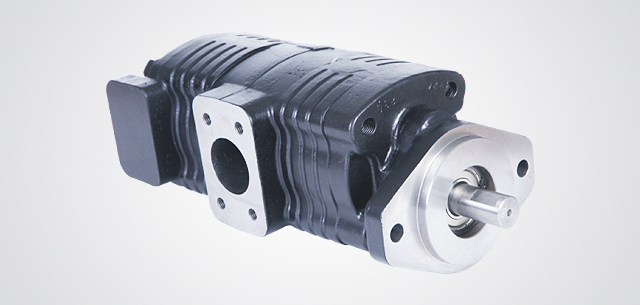

Model No.	VGP-EE
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	5.30 - 17.70
Max. Displacement (cm³/rev)	87.6 - 208.4
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

General Information

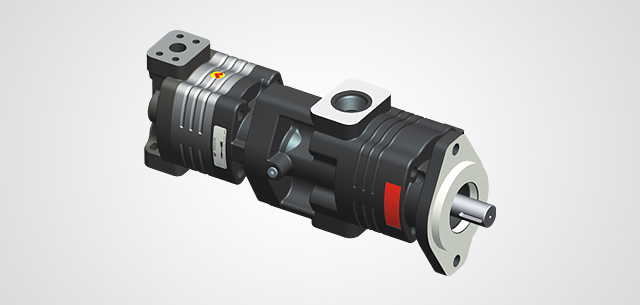

Model No.	VGP-DB
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	1.88 - 8.79
Max. Displacement (cm³/rev)	30.9 - 144.1
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

General Information

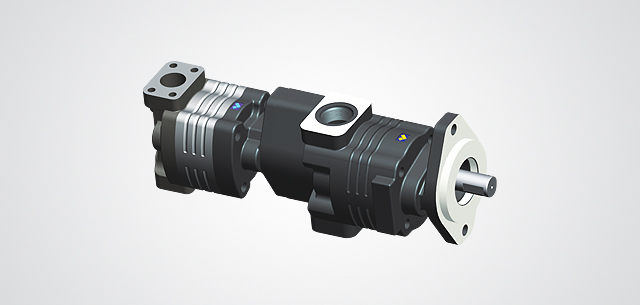

Model No.	VGP-DC
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	2.22 - 10.28
Max. Displacement (cm³/rev)	36.5 - 168.6
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

General Information
