Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VTXBB	3000	210	0.79 - 5.61	12 - 92	2500	SAE - B / C
VT6BB	3500	240	0.79 - 5.61	12 - 92	2500	SAE - B
VT6CB	4000	275	1.05 - 8.52	17 - 140	2500	SAE - B
VT6CC	4000	275	1.32 - 12.20	22.0 - 200	2800	SAE - B
VT6CCSH	4000	275	1.32 - 12.20	22.0 - 200	2800	SAE - B
VT6DC	4000	275	3.56 - 17.75	59.0 - 290	2500	SAE - C
VT6DDS	3500	240	5.80 - 23.3	96.0 - 380	2500	SAE - C
VT6EC	4000	275	8.73 - 22.56	143 - 370	2200	SAE - C
VT6ED	3500	240	11.0 - 28.06	180 - 460	2200	SAE - C
VT6EE/EES	3500	240	16.1 - 32.8	264 - 540	2200	ISO / SAE - E
VT6CCM	4000	275	1.32 - 12.20	22.0 - 200	2800	SAE - B
VT6CCZ	4000	275	1.32 - 12.20	22.0 - 200	2200	SAE - C
VT6GCC	4000	275	1.32 - 12.20	22.0 - 200	2800	R - 17 - 102
VT6DCM	4000	275	3.56 - 17.75	59 - 290	2500	SAE - C
VT6ECM	4000	275	8.73 - 22.56	143 - 370	2200	SAE - C
VT6EDM	3500	240	11.0 - 28.06	180 - 460	2200	SAE - C
VT7BB/BBS	4650	320	0.67 - 6.10	12 - 100	3600	SAE - B
VT7QCC	4350	300	1.32 - 12.20	22 - 200	3000	SAE - B / C
VT7DB/DBS	4350	300	3.03 - 12.69	50 - 208	2500	SAE - C
VT7QDC	4350	300	3.34 - 15.74	55 - 258	2500	SAE - C
VT7DD/DDS	3600	250	5.36 - 19.25	88 - 316	2500	SAE - C
VT7EB/EBS	4350	300	8.42 - 19.45	138 - 319	2200	SAE - C
VT7QEC	4350	300	8.73 - 22.56	143 - 370	2200	SAE - C
VT7ED/EDS	3600	250	10.7 - 26.00	176 - 427	2200	SAE - C
VT7EE/EES	3500	240	16.1 - 32.8	264 - 540	2200	SAE - E / ISO3019-2
VT67BB	4350	300	0.35 - 3.05	12 - 100	2800	SAE - B
VT67CB	4350	300	1.01 - 9.15	17 - 150	2800	SAE - B
VT67DB	4350	300	3.25 - 14.7	54 - 240	2500	SAE - C
VT67DC	4000	275	2.68 - 9.64	44 - 156	2500	SAE - C
VT67EB	4350	300	8.42 - 19.45	138 - 320	2200	SAE - C
VT67EC	4000	275	8.42 - 22.5	143 - 370	2200	SAE - C

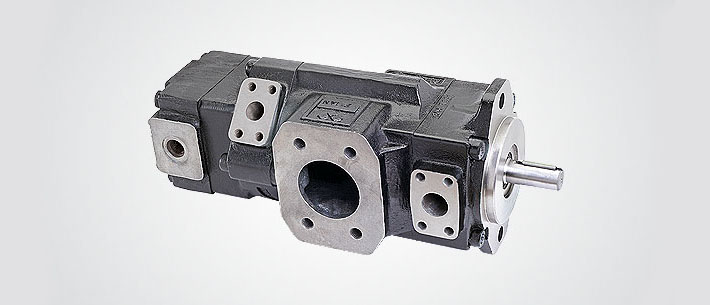

Model No.	VT6CBB
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	1.46 - 11.7
Max. Displacement (cm³/rev)	23 - 180
Maximum Speed RPM	2500
Mounting Standard	SAE - B

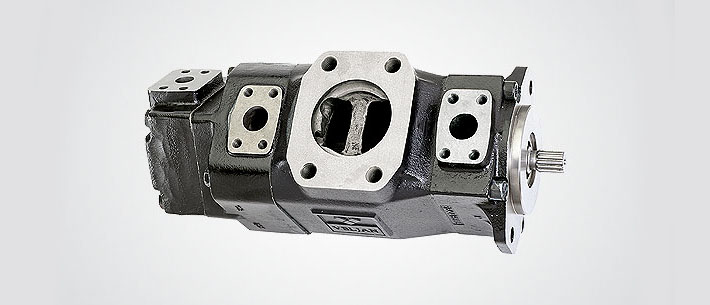

Model No.	VT6CCB
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	1.72 - 15
Max. Displacement (cm³/rev)	28 - 240
Maximum Speed RPM	2500
Mounting Standard	SAE - B

Model No.	VT6DCB
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	3.96 - 20.5
Max. Displacement (cm³/rev)	65 - 330
Maximum Speed RPM	2500
Mounting Standard	SAE - C

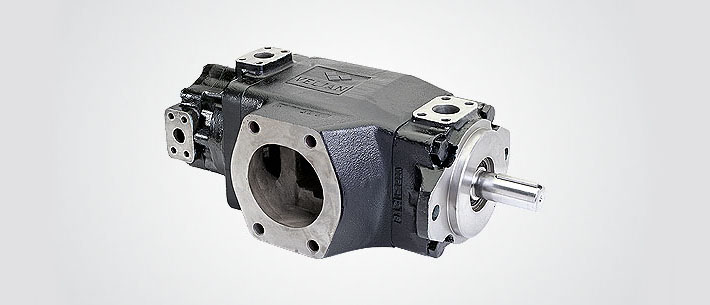

Model No.	VT6DCC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	4.22 - 23.94
Max. Displacement (cm³/rev)	70 - 390
Maximum Speed RPM	2500
Mounting Standard	SAE - C

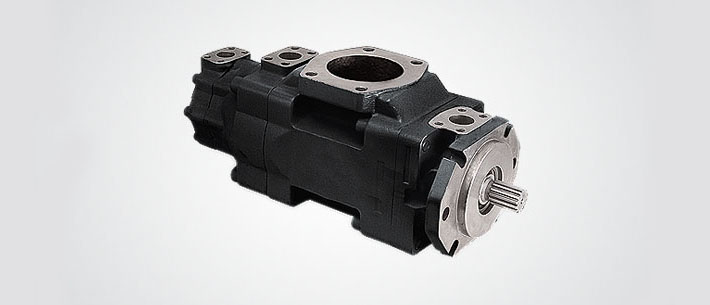

Model No.	VT6DDCS
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	6.46 - 29.34
Max. Displacement (cm³/rev)	107 - 480
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Model No.	VT6DCCM
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	4.22 - 23.94
Max. Displacement (cm³/rev)	70 - 390
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Model No.	VT6EDC/EDCS
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	11.63 - 34.15
Max. Displacement (cm³/rev)	191 - 560
Maximum Speed RPM	2200
Mounting Standard	SAE - E

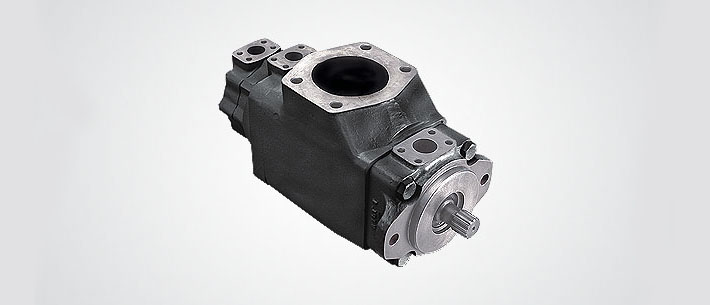

Model No.	VT7DBB/DBBS
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	3.35 - 15.74
Max. Displacement (cm³/rev)	56 - 258
Maximum Speed RPM	2500
Mounting Standard	SAE - C

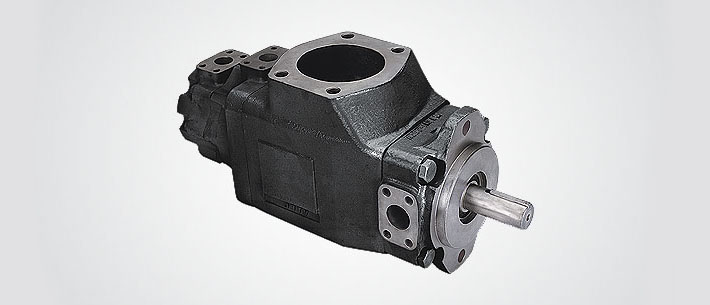

Model No.	VT7QDCB
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	3.66 - 18.79
Max. Displacement (cm³/rev)	61 - 308
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Model No.	VT7QDCC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	3.96 - 21.84
Max. Displacement (cm³/rev)	66 - 358
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Model No.	VT7DDB/DDBS
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	5.67 - 22.33
Max. Displacement (cm³/rev)	94 - 366
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Model No.	VT7EDB/EDBS
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	11.1 - 29.1
Max. Displacement (cm³/rev)	182 - 478
Maximum Speed RPM	2200
Mounting Standard	SAE - E

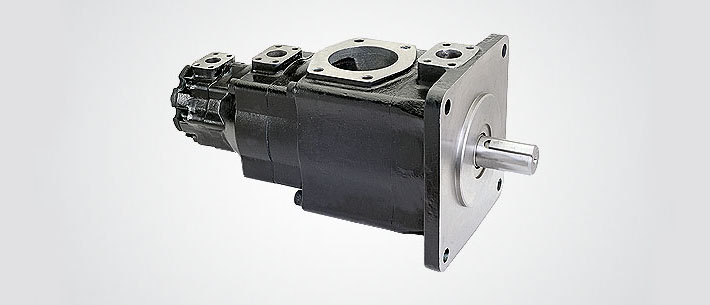

Model No.	VT7QEDC/QEDCS
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	187 - 528
Max. Displacement (cm³/rev)	11 - 100
Maximum Speed RPM	2200
Mounting Standard	SAE - E

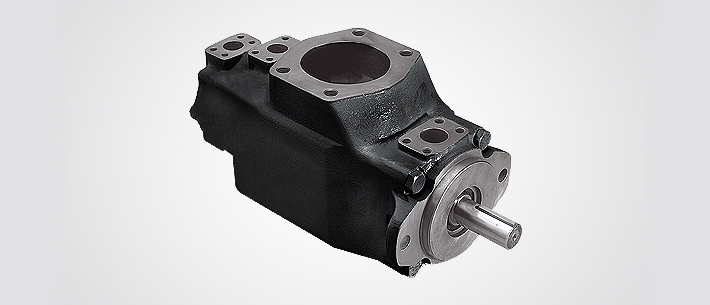

Model No.	VT67DBB
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	3.59 - 17.75
Max. Displacement (cm³/rev)	60 - 290
Maximum Speed RPM	2500
Mounting Standard	SAE - C

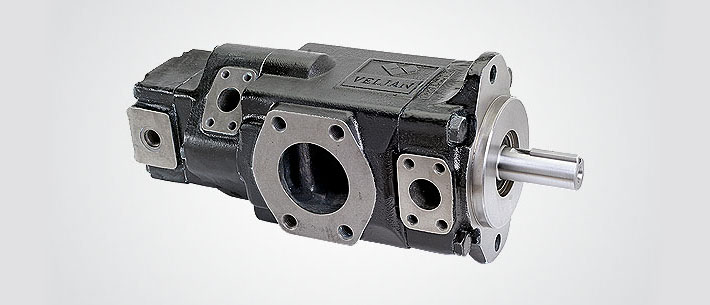

Model No.	VT67DCB
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	3.91 - 20.8
Max. Displacement (cm³/rev)	64 - 341
Maximum Speed RPM	2200
Mounting Standard	SAE - C

Model No.	VT67DCC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	4.0 - 21.84
Max. Displacement (cm³/rev)	66 - 358
Maximum Speed RPM	2200
Mounting Standard	SAE - C

Model No.	VT67DDCS
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	6.0 - 25.38
Max. Displacement (cm³/rev)	99 - 416
Maximum Speed RPM	2200
Mounting Standard	SAE - C

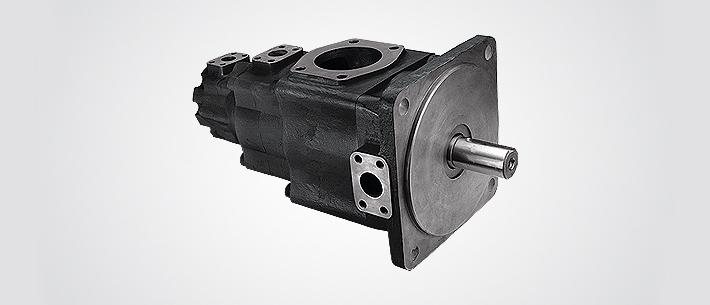

Model No.	VT67EDB
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	11.28 - 31.11
Max. Displacement (cm³/rev)	186 - 510
Maximum Speed RPM	2500
Mounting Standard	ISO3019 - 2

Model No.	VT67EDC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	11.41 - 32.14
Max. Displacement (cm³/rev)	187 - 528
Maximum Speed RPM	2200
Mounting Standard	ISO3019 - 2

Double Vane Pumps
