Single Gear Pumps

Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VGP-B	3500	240	0.6 - 2.44	9.8 - 39.9	3000	SAE - A / B
VGP-C	3500	240	0.97 - 3.94	15.9 - 64.4	3000	SAE - B / C
VGP-D	3500	240	1.28 - 6.38	20.6 - 104.2	2400	SAE - B / C
VGP-E	3500	240	2.65 - 8.85	43.8 - 146.5	2400	SAE - B / C

^*Click on model name for detailed information

Model No.	VGP-B
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	0.6 - 2.44
Max. Displacement (cm³/rev)	9.8 - 39.9
Maximum Speed RPM	3000
Mounting Standard	SAE - A, SAE - B

Download Catalogue

General Information

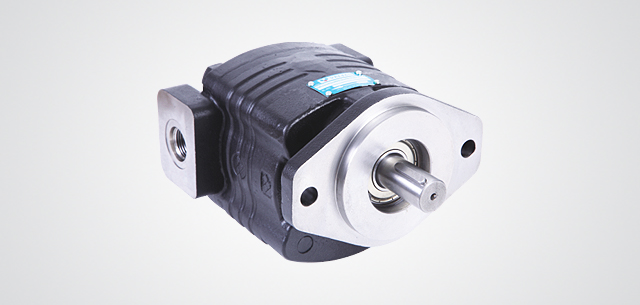

Model No.	VGP-C
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	0.97 - 3.94
Max. Displacement (cm³/rev)	15.9 - 64.4
Maximum Speed RPM	3000
Mounting Standard	SAE - B, SAE - C

Download Catalogue

General Information

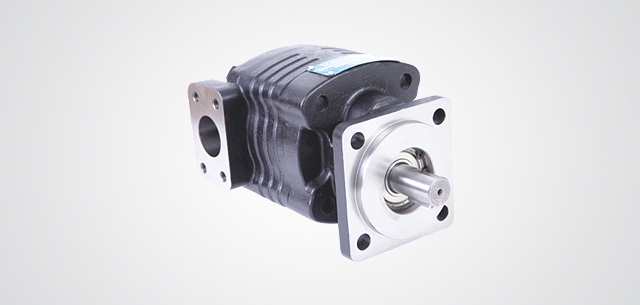

Model No.	VGP-D
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	1.28 - 6.38
Max. Displacement (cm³/rev)	20.6 - 104.2
Maximum Speed RPM	2400
Mounting Standard	SAE - B, SAE - C

Download Catalogue

General Information

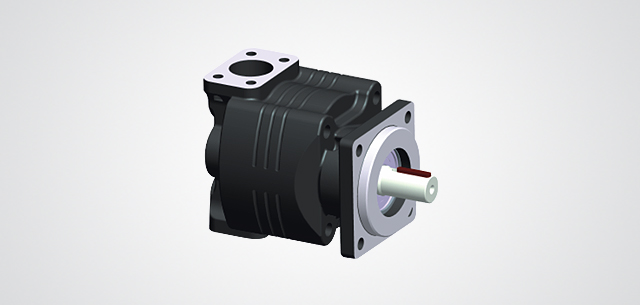

Model No.	VGP-E
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	2.65 - 8.85
Max. Displacement (cm³/rev)	43.8 - 146.5
Maximum Speed RPM	2400
Mounting Standard	SAE - B, SAE - C

Download Catalogue

General Information
