Triple Gear Pumps

Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VGP-BBB	3500	240	1.8 - 7.32	29.4 - 119.7	3000	SAE - A
VGP-CCC	3500	240	2.91 - 11.82	47.7 - 193.2	3000	SAE - A
VGP-DDD	3500	240	3.84 - 19.14	61.8 - 312.6	3000	SAE - B
VGP-EEE	3500	240	7.95 - 26.55	131.4 - 439.5	3000	SAE - B

^*Click on model name for detailed information

Model No.	VGP-BBB
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	1.8 - 7.32
Max. Displacement (cm³/rev)	29.4 - 119.7
Maximum Speed RPM	3000
Mounting Standard	SAE - A

Download Catalogue

General Information

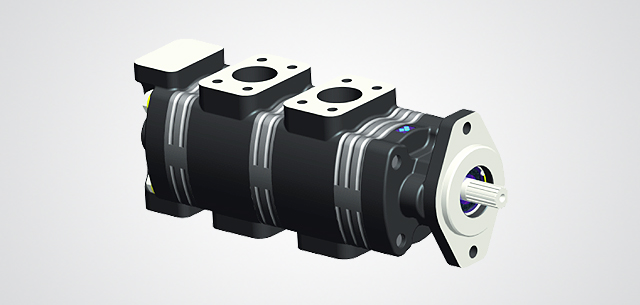

Model No.	VGP-CCC
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	2.91 - 11.82
Max. Displacement (cm³/rev)	47.7 - 193.2
Maximum Speed RPM	3000
Mounting Standard	SAE - A

Download Catalogue

General Information

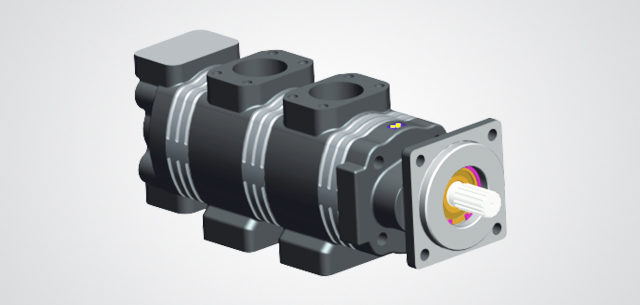

Model No.	VGP-DDD
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	3.84 - 19.14
Max. Displacement (cm³/rev)	61.8 - 312.6
Maximum Speed RPM	3000
Mounting Standard	SAE - B

Download Catalogue

General Information

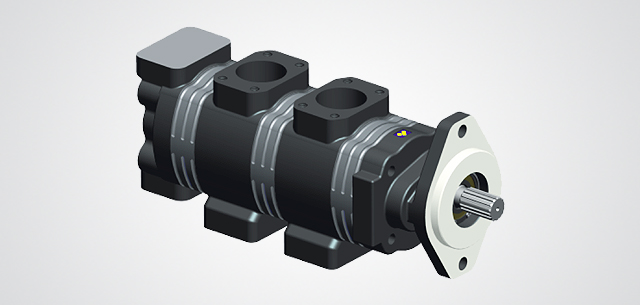

Model No.	VGP-EEE
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	7.95 - 26.55
Max. Displacement (cm³/rev)	131.4 - 439.5
Maximum Speed RPM	3000
Mounting Standard	SAE - B

Download Catalogue

General Information
