Bearing Pumps

Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VGP-CH/CH1	3000	210	0.99 - 4.92	15.9 - 80.0	2400	SAE - B / C
VGP-DH/DH1	3000	210	1.3 - 6.4	20.60 - 104.2	2400	SAE - C
VGP-EH/EH1	3000	210	3.1 - 12.2	50.20 - 200.10	2400	SAE - C

^*Click on model name for detailed information

Model No.	VGP-CH/CH1
Max. Pressure (psi)	3000
Max. Pressure (bar)	210
Max. Displacement (in³/rev)	0.99 - 4.92
Max. Displacement (cm³/rev)	15.9 - 80.0
Maximum Speed RPM	2400
Mounting Standard	SAE - B, SAE - C

Download Catalogue

General Information

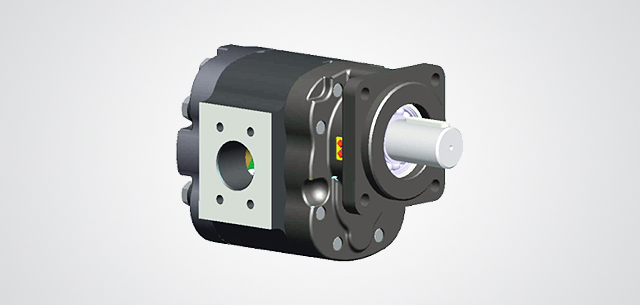

Model No.	VGP-DH/DH1
Max. Pressure (psi)	3000
Max. Pressure (bar)	210
Max. Displacement (in³/rev)	1.3 - 6.4
Max. Displacement (cm³/rev)	20.60 - 104.2
Maximum Speed RPM	2400
Mounting Standard	SAE - C

Download Catalogue

General Information

Model No.	VGP-EH/EH1
Max. Pressure (psi)	3000
Max. Pressure (bar)	210
Max. Displacement (in³/rev)	3.1 - 12.2
Max. Displacement (cm³/rev)	50.20 - 200.10
Maximum Speed RPM	2400
Mounting Standard	SAE - C

Download Catalogue

General Information
